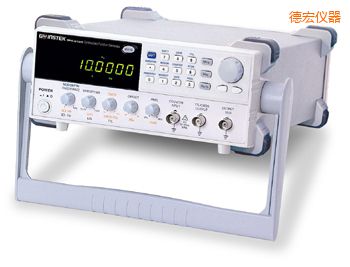

Based on Direct Digital Synthesized (DDS) technology and unique FPGA design, SFG-2000/2100 Series
Function Generators are built with exceptionally high performance far exceeding that of any conventional
function generators, at a very competitive price. Stable output frequency, low distortion, and fine
frequency resolution are the most remarkable characteristics of this product series.

MAIN

Frequency Range
(For Sine, Square)

1Hz~20MHz

Frequency Range
(For Triangle)

1Hz~1MHz

Frequency Resolution

1Hz

Frequency Stability

∮ 20 ppm

Frequency Accuracy

∮ 20 ppm

Frequency Aging

∮ 5 ppm / year

Output Function

Sine, Square, Triangle

Amplitude Range

2mV~10Vpp(into 50?load)

Impedance

50?∮10?

Attenuator

-20dB∮1dB⊙2

DC Offset

≌-5V°≈+5V(into 50?load)

Duty Control Range

20% to 80%, 2Hz~1MHz (Square wave only)

Range Resolution

1%

Display

9 digits LED display

SINE WAVE

Harmonics Distortion

-55dBc,0.1Hz°200kHz; -40dBc,0.2MHz°4MHz; -30dBc,4MHz°10MHz
(Specification applied to both TTL/CMOS OFF and from MAX. to 1/10 level)

Flatness (Relative to 1kHz)

≌∮ 0.3dB,0.1Hz°1MHz; ≌∮ 0.5dB,1MHz°4MHz; ≌∮ 2dB, 4MHz°10MHz

TRIANGLE WAVE

Linearity

≠98?,0.1Hz°100kHz;≠95?,100kHz°1MHz

SQUARE WAVE

Symmetry

∮ 1% of period +4ns to 0.1Hz°100kHz

Rise or Fall Time

∝25ns at maximum output.(into 50?load)

CMOS OUTPUT

Level

4Vpp∮1Vpp°15Vpp∮1Vpp adjustable; Rise or Fall Time ∝120ns

TTL OUTPUT

Level

≠3Vpp ; Fan Out; 20 TTL load ; Rise or Fall Time ∝25ns

SWEEP OPERATION

Rate

100:1 ratio max. and adjustable
( In order to get maximum sweep span, the sweep time needs to be tuned on when adjust sweep span. )

Time

1Sec°30Sec adjustable
( When the sweep time is too long, the stop frequency will reach and stay at the maximum frequency of instrument until the end of the sweep cycle. )

Mode

Lin./Log. switch selector

AMPLITUDE MODULATION

Depth & Modulation Frequency

0°100? ; 400Hz(INT), DC°1MHz(EXT)

Carrier BW

100Hz°5MHz(-3dB)

EXT Modulation Sensitivity

∝ 10Vpp for 100?modulation

FREQUENCY MODULATION

Deviation & Modulation Frequency

0°∮50kHz,center at 1MHz, 400Hz fixed(INT), 1kHz fixed(EXT)

EXT Modulation Sensitivity

∝ 10Vpp for 10% modulation (center at 1MHz)

FREQUENCY COUNTER

Range

5Hz°150MHz

Accuracy

Time base accuracy∮1count

Time base

∮20ppm(23?∮5?)after 30 minutes warm up

Resolution

The maximum resolution is 100nHz for 1Hz and 0.1Hz for 100MHz

Input Impedance

1M?/150pf

Sensitivity

∝ 35mVrms (5Hz~100MHz)
∝ 45mVrms (100MHz~150MHz)

STORE/RECALL FUNCTION

10 groups of Setting memories

POWER SOURCE

AC115V∮10%, AC 230V+10%/-15%, 50/60Hz

ACCESSORIES

Instruction manual⊙1
Power Cord x 1
GTL-101⊙ 2

DIMENSION & WEIGHT

266(W)⊙107(H)⊙293(D) mm
Approx. 3.2kg
